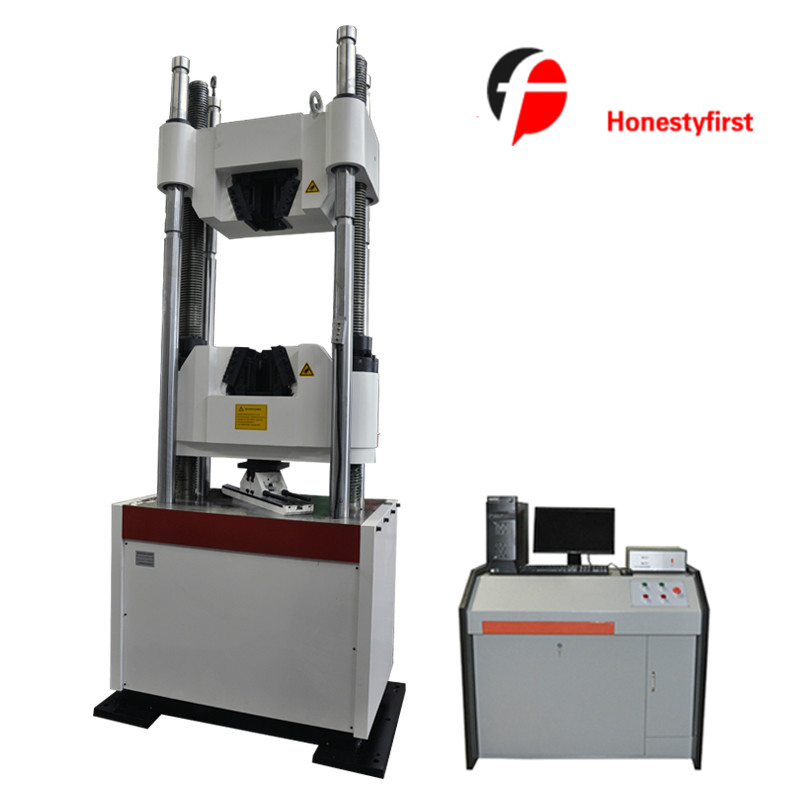

WAW-Y Insulator Tensile Testing Machine




Technical specification


Model WAW-300Y WAW-600Y WAW-1000Y
Max. Load 300kN(30Ton) 600kN(60Ton) 1000kN(100Ton)
Measuring range 6-300KN 12-600KN 20KN-1000KN
Load accuracy                ± 1% of indicated value
Displacement resolution                        0.01mm
Piston stroke                        250mm
Tension test space (including piston stroke)                  800mm       850mm
Compression test space                  700mm       750mm
Diameter of round specimen Φ6-Φ26mm Φ13-40mm Φ13-60mm
Thickness of flat specimen 0-15mm 0-30mm 0-40mm
Max. Width of flat specimen 80mm 80mm 120mm
Clamping method                     Built-in hydraulic clamp
Diameter of cutting specimen                           Φ10mm
Platen size                          200*200mm
3 points bending fixture space                           450mm
The width of bending anvil                           140mm
Support column diameter                  Φ30mm      Φ40mm
Diameter of load-frame              990*600*2435mm 1100*770*2490mm
Diameter of control cabinet              1140*700*930mm
Weight     2800KG     3000KG     4700KG
Power supply               Three phases AC 380V  50Hz
                     ( Can be customized )
